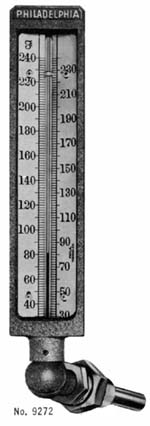

Adjustable Angle Thermometers

9" scale
with Separable Sockets Connection

V-Shape aluminum case in durable attractive finish, lens front red reading mercury tube. Tapered stem precisely fits taper reamed separable socket assuring maximum heat conduction.

Available Temperature Ranges

-40° F to 110° F 2° Division
0° F to 120° F 1° Division
20° F to 180° F 2° Division
30° F to 240° F 2° Division
30° F to 300° F 2° Division
50° F to 400° F 5° Division

Dual F° and C° scale available, custom temperatures ranges also available.

Socket No.
Stem Length Incl. Thread
Extension Neck
9" Scale Case
700
3½"
9272
701
6"
9273
702
3½"
2 ½"
9274
703
8"
9275
704
5½"
2 ½"
9276
705
10"
9277
706
5½"
4 ½"
9278

Did you know?
The advances in thermometry in the first half of the eighteenth century included the significant work of Guillaume Amontons (d. 1705) on gases. He studied the expansion of gases on heating but did not achieve formulation of Charles' Law. He developed the air thermometer, which measures the increase in pressure of a system of constant volume when the temperature increases, and also made significant studies of the liquid-in-glass thermometer. The liquids used in a thermometer by Amontons, and still used today, are alcohol (with red dye in it, used at low temperatures), linseed oil (for higher temperatures), water, and mercury.
